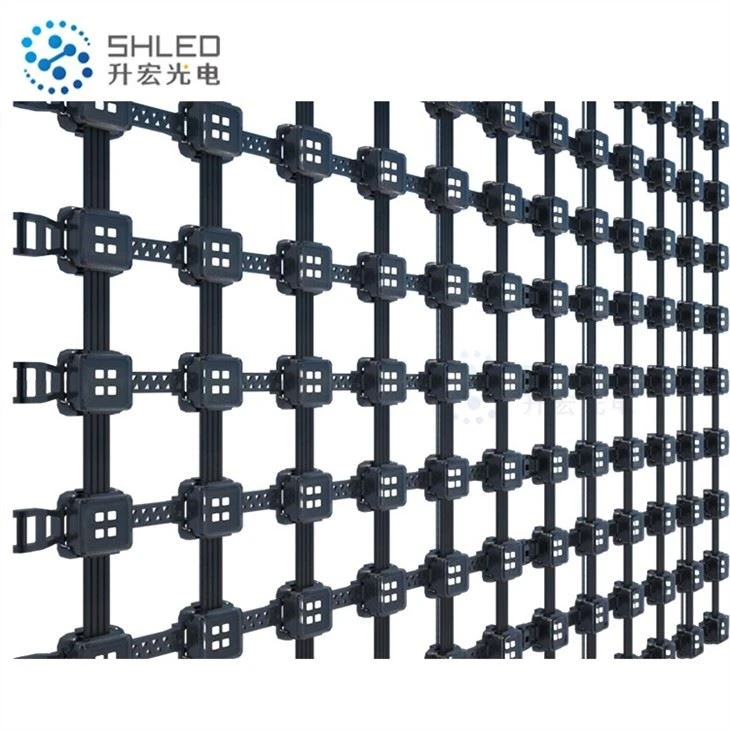

High Quality RGB LED Pixel Mesh Screen Rau Media Facade

Voltage:

DC12V-24V

Lub zog:

0.7W/1.44W

LED Hom & Qty:

SMD 3535 RGB * 2pcs / SMD 2727 RGB * 4pcs

Chip Hom:

UAS 5603A

Tswj hom:

SPI / Kev sib cais

Plhaub Khoom:

Engineer yas/PC

Grey Level:

12Me ntsis4096qib

IP Qib:

IP68

Brightness:

Ntau dua lossis sib npaug4 800cd

wavelength:

R: 615-630nm

G: 525-545nm

B: 460-480nm

ChipHom:

Epistar

Kev ua neej nyob:

Ntau tshaj lossis sib npaug rau 30000H

Beam Angle:

Ntau tshaj lossis sib npaug li 120 degree

Ua haujlwm Temp:

-20 degree ~ ntxiv rau 60 degree

Cia Temp:

-40 degree ~ ntxiv rau 75 degree

Kev kuaj fais fab

Input voltage12V, Tau=25degree±5degree

30 feeb

Lub hwj chim 0 65-0.75W

Kev ntsuas kub

Input voltage: 12.5Vnrog cov xim dawb

30 feeb

Tsawg dua los yog sib npaug60degree

Tso Test

Dawb poob ntawm 1.2m qhov siab

10 Lub voj voog

Tsis muaj kev puas tsuaj rau lub ntsej muag, kev ua haujlwm ib txwm muaj

Thermal Shock

-40degree(30 feeb) ~ 100degree(30 feeb)

200 voj voog

Tsis muaj kev puas tsuaj rau lub ntsej muag, kev ua haujlwm ib txwm muaj

Ntsej Tsuag Test

5 feem puaNaCl

72H

Cov khoom yog non-corrosive thiab ua haujlwm

Anti-UV Test

UV-A, 350-400nm, 60degree

72H

Cov khoom yog dawb los ntawm aging thiab discoloration,

ua haujlwm li qub

Hloov Cycle Test

ON 25 vib nas this / OFF 5 vib nas this,

ON/OFF lub voj voog

48H /

5000 cycle

Functioning ib txwm

Kev ntsuas hluav taws xob

DC 500V

Ib zaug

Functioning ib txwm

ESD Test

3000V

Ib zaug

Functioning ib txwm

SiabandLow uaThuab taisTyog

-30degree~65degree,RH 85 feem pua

72H

Functioning ib txwm

Tensile Tyog

Input / output kab, rub quab yuam 20KG lossis ntau dua

Ib zaug

Cov hlau tsis tawg thiab ua haujlwm li qub

Kev vibrationTyog

Kab rov tav thiab ntsug txoj kev

4H

Functioning ib txwm

Kev ntsuas IP

IP 68 0.5m hauv qab dej

48H

Functioning ib txwm

Nplaim Retardant Rating

Xa mus rau UL{{0}}V0 tus qauv

10 Lub voj voog

Self-extinguishing los ntawm hluav taws, tsis muaj hluav taws kub poob
